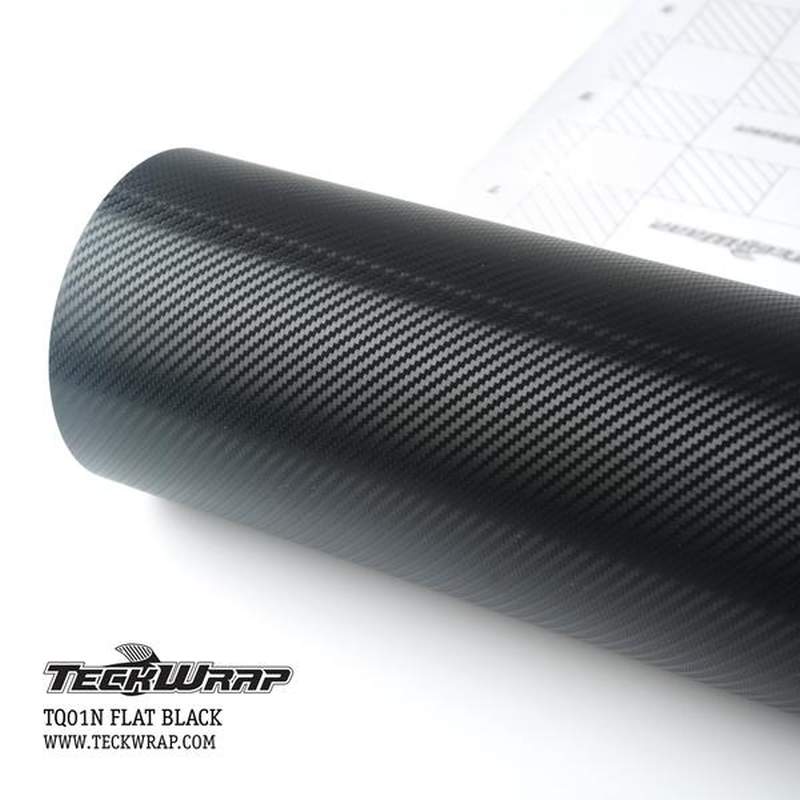

KARBON FLAT BLACK 152cm x 1m

Reliable polymeric PVC for partial application. Designed for wrapping of smooth surfaces or elements of medium difficulty in wrapping; spoilers, mirrors, etc. Memory killed at over 80 Celsius with post-heating. Thickness is 150 micron. Dimensional stability -2-3mm in 1 year.
The size of carbon cells is medium. Lines are straight and stylish. This is by far the most popular vinyl film. Unlike those cheap carbon patterns, true 3D texture of the film reveals genuine look of dry carbon fiber. The weave reflects light the same way as the actual carbon fiber would.

Thickness of film (C=10 micron): 15C±0.5C
Thickness of film with release liner: 33C±0.5C
Type of film: Medium grade polymeric calendered vinyl film with air release channels
Colors: Black

Series: 180 series
Glue: Solvent based adhesive, transparent, origin: Taiwan.
Release liner: White silicone-coated paper with double-sided polyethylene coating
Storing period: 2 years if stored in +10°С to +20°С, relative humidity 50%, in original package, away from direct sun light, clean and dry place
Indoor life: 4 years when followed rules of application and use
Outdoor life: 2 years when followed rules of application and use
Application: from +5°С to +30°С, usage from -30°С to +50°С
Dimensional stability: shrinkage less than 2%
Plastification: between 28%-38%
Breaking Strength: 23.7 N/10mm (Average) Test Method: ASTM D3759/D3759M-05 6.4 N/10mm (Average) Test Method: ASTM D3330/D3330-04
Light Ageing in UV Exposure: Test Method: ASTM D4329-13 Cycle A & ISO 105-A02:1993/Cor.2:2005, Test result: 3-4 Exposure cycle: ASTM D4329-13 cycle A, Lamp type: UVA-340 8h UV at (60±2.5)℃ BPT, 0.89 W/ (m2•nm)@340nm, 4h condensation at (50±2.5)℃ BPT, Exposure duration: 44h

Package: Roll width 152 cm, length 18 m, weight 14 kg
